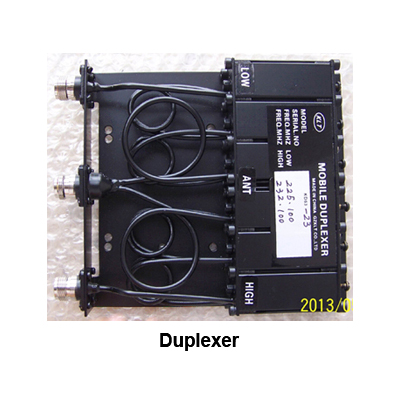

Duplexer

1. Operating frequency band: 220-240MHz
2. Bandwidth: 20MHz
3. Typical operating frequency: uplink 220-240MHz; 220-240 MHz
4. Insertion loss: ≤1.0dB isolation degree: ≥ 75dB
5. Port standing wave coefficient: ≤1.25
6. Through power: ≮100W
7. Impedance: 50Ω
8. Working temperature: -40-+70℃
9. Size: 190x158x31.5mm
10. Weight: 0.9kg
