COFDM-1 Series of Ultra-Long-Distance HD Video Transmission Radio

COFDM-1 series long distance HD video radio is our company development and production for the ultra-long-distance video transmission demand one remote/low-latency/single HD video radio and bidirectional high speed digital transceiver. This radio use the advanced SCFDE broadband modulation and demodulation and LDPC coding and decoding technology improve the transmission distance and image quality obviously; Suitable for non-line-of-sight and high-speed mobile transmission; Airborne transmitter use portable thermal structure design easy installation and use of unmanned aerial vehicles. Airborne transmitter have built-in 1W/5W/10W linear RF amplifier flight height of 100 meters or more transmission more than 20 KM/50 KM/100 KM when open-side.
COFDM-1 series long distance HD video radio is very suitable for military reconnaissance and public security/ fire control/ emergency rescue and Customs and Border Protection/ Inspection by sea and Live broadcast/ Site monitoring and Grid line inspection/ Pipeline inspection line and Plant protection in Military unmanned aerial vehicles and UAV/ Industrial and commercial UAV/High-end consumer UAV it can achieve high quality Real-time mobile video transmission in city sea mountain or many other complex environment.

Product Features:

Ultra-long transmission distance: more than 20KM/50KM/100KM @1W/5W/10W radio

Super anti-multipath capability, can be applied to complex environment, support high-speed move (more than 600km/h)

Level of broadcast TV/Monitor’s HD video encoding: HDMI/SDI/CVBS adaptive, 4K/1080/1080i/720P/576P adaptive

Adjustable bandwidth at 2/4/8MHz: Multi-bandwidth, Multi-rate, Multi-mode

Multiple encryption to avoid illegal reception

Small modular design: compact, light, integrated

Ultra low power consumption

Built-in bidirectional digital transmission module: 410-480/840-845/902-928MHz, 3.6-19.2kbps normal/19.2-230.4kbps frequency hopping, 1-2W, TTL/232/485/422, 3.3-30VDC

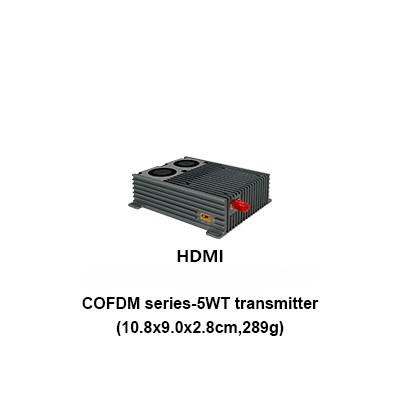

COFDM-1 Series of Ultra-Long-Distance HD Video Transmission Radio(图1)

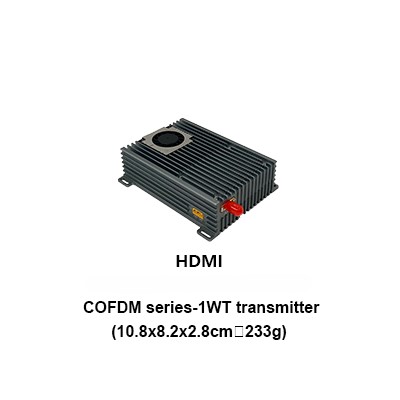

COFDM-1 Series of Ultra-Long-Distance HD Video Transmission Radio(图2)
