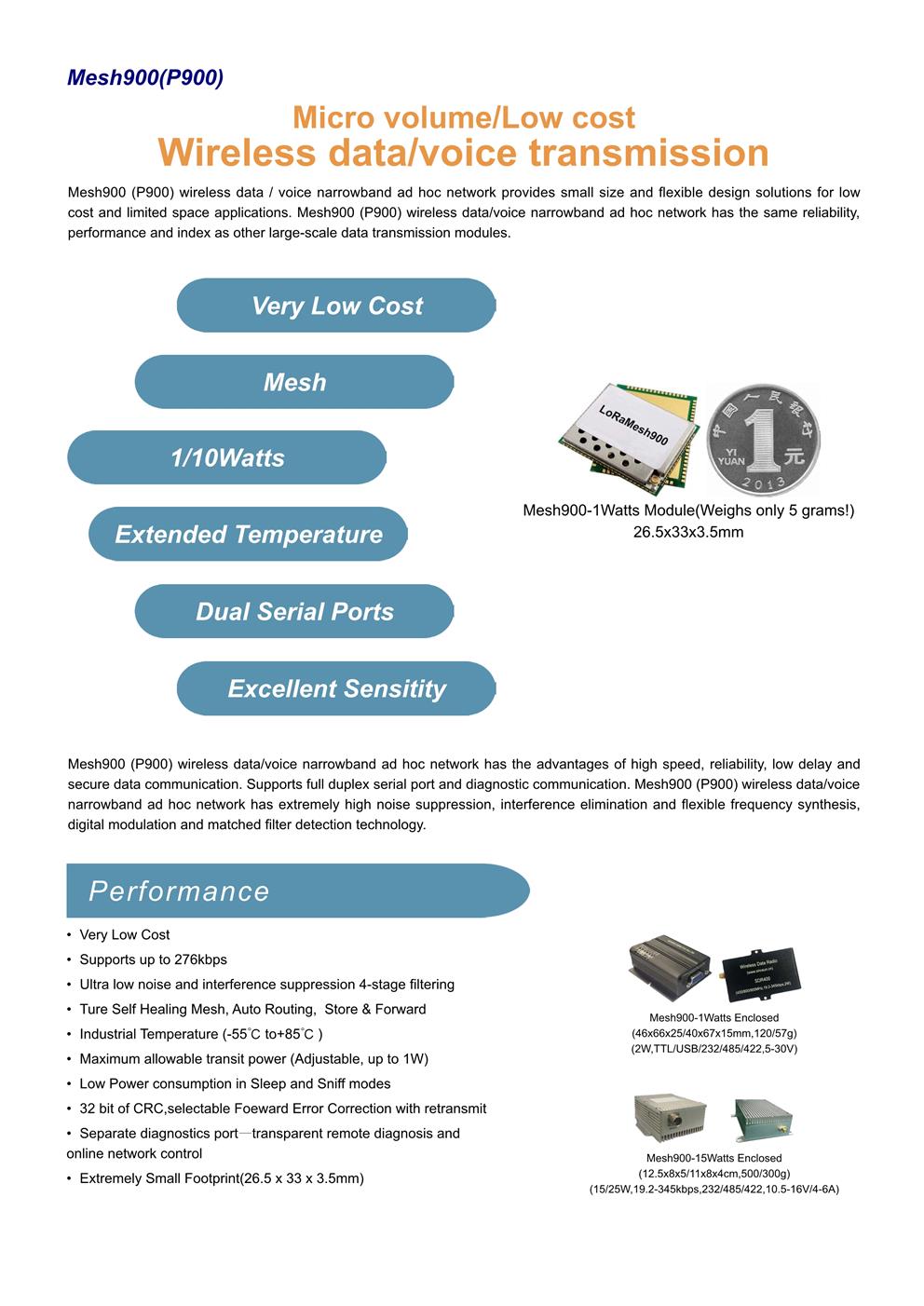

Mesh900(P900)Micro volume/Low cost Wireless data/voice transmission

Mesh900 (P900) wireless data / voice narrowband ad hoc network provides small size and flexible design solutions for low cost and limited space applications. Mesh900 (P900) wireless data/voice narrowband ad hoc network has the same reliability, performance and index as other large-scale data transmission modules.

Mesh900 (P900) wireless data/voice narrowband ad hoc network has the advantages of high speed, reliability, low delay and secure data communication. Supports full duplex serial port and diagnostic communication. Mesh900 (P900) wireless data/voice narrowband ad hoc network has extremely high noise suppression, interference elimination and flexible frequency synthesis, digital modulation and matched filter detection technology.

Performance:

Very Low Cost

Supports up to 276kbps

Ultra low noise and interference suppression 4-stage filtering

Ture Self Healing Mesh, Auto Routing,  Store & Forward

Industrial Temperature (-55℃ to+85℃)

Maximum allowable transit power (Adjustable, up to 1W)

Low Power consumption in Sleep and Sniff modes

32 bit of CRC,selectable Foeward Error Correction with retransmit

Separate diagnostics port—transparent remote diagnosis and online network control

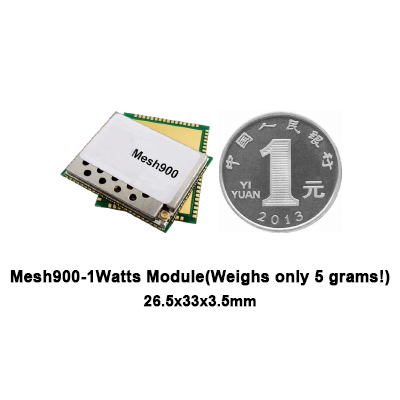

Extremely Small Footprint(26.5 x 33 x 3.5mm)
