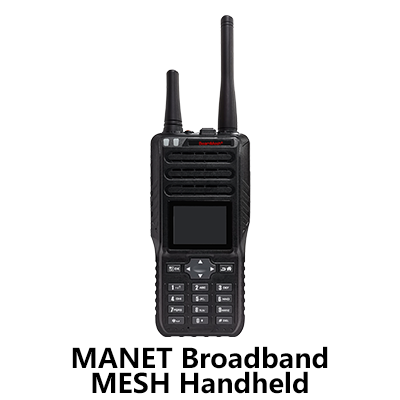

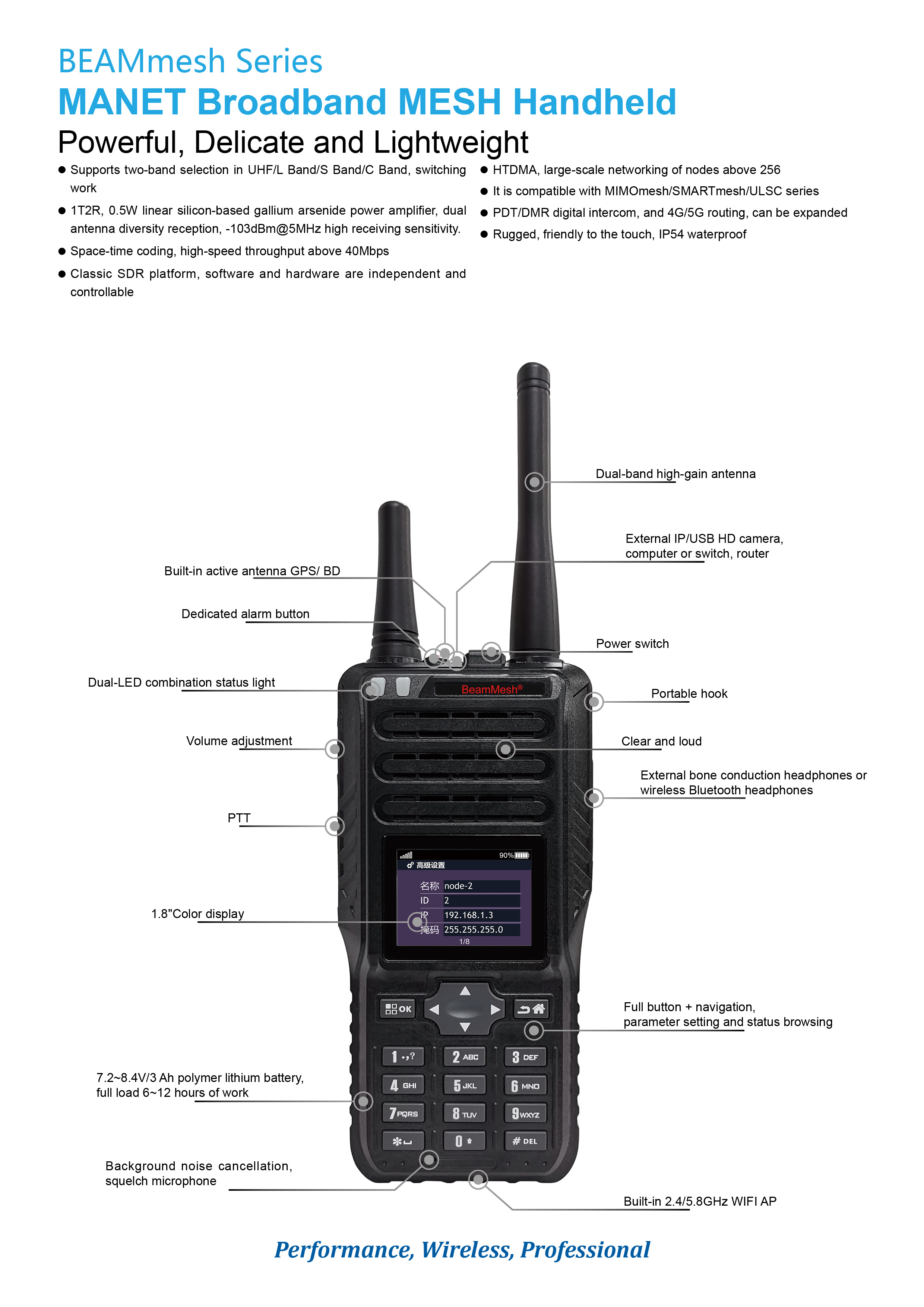

MANET Broadband MESH Handheld

Supports two-band selection in UHF/L Band/S Band/C Band, switching work

1T2R, 1W linear silicon-based gallium arsenide power amplifier, dual antenna diversity reception, -103dBm@5MHz high sensitivity.

Space-time coding, high-speed throughput above 56Mbps; Spatial multiplexing, the rate of more than three hops does not decline

Classic SDR platform, software and hardware are independent andcontrollable

HTDMA, large-scale networking of nodes above 256

Heterogeneous intelligent channel selection networking, and dynamic adaptive frequency hopping strong anti-interference

Support DES/AES and other software encryption, and TF card hardware encryption

It is compatible with MIMOmesh/SMARTmesh/ULSC series

PDT/DMR digital intercom, and 4G/5G routing, can be expanded

Rugged, friendly to the touch, IP67 waterproof, military-grade harsh environment
