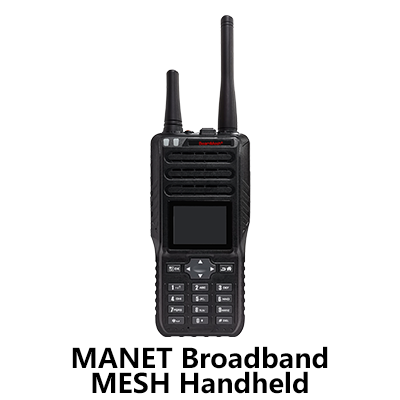

MANET Broadband MESH Handheld

Support 70M~6GHz dual-band selection, switching work

1W + 1W linear silicon-based gallium arsenide power amplifier, dual antenna diversity reception, -103dBm@5MHz high sensitivity. City ground 1~5 km, open LOS 50~100 km

Space-time coding, high-speed throughput above 56Mbps; Space multiplexing, the rate of more than three hops does not decline

Classic SDR platform, software and hardware are independent and controllable

HTDMA, large-scale networking of nodes above 256

Heterogeneous intelligent channel selection networking, and dynamic adaptive frequency hopping strong anti-interference

Support DES/AES and other software encryption, and TF card hardware encryption

It is compatible with MimoMesh series and SmartMesh series

PDT/DMR digital intercom, and 4G/5G routing can be expanded

Rugged, friendly to the touch, IP67 waterproof, military-grade harsh environment
